Transformer Insulation Cylinders
Also known as: Pressboard Cylinders
Transformer insulation cylinders provide electrical separation, mechanical support and structural reinforcement around winding assemblies. Diameter, wall thickness, height, material, joints and dimensional tolerances are confirmed according to the transformer design.
Dimensions, materials, tolerances and testing requirements are confirmed according to customer drawings and order specifications.
Key functions and options
- Continuous cylindrical insulation
- Supports winding structure
- Customized diameter and height
- Open or joined construction options
Typical applications
- Transformer winding insulation
- Structural reinforcement
- Concentric insulation barriers
Quotation preparation
Information to include with your RFQ

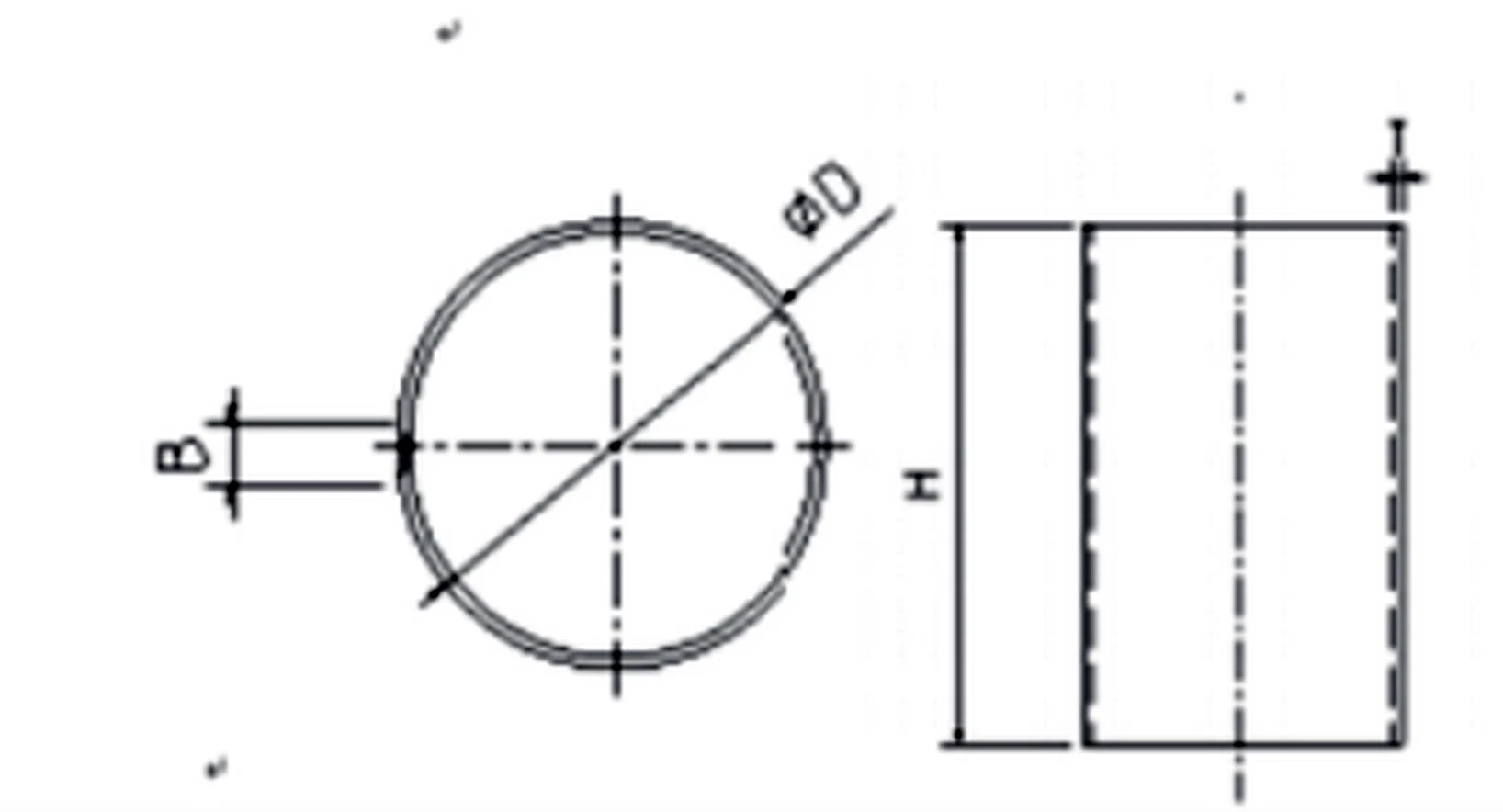

- Inner and outer diameter
- Height and wall thickness
- Joint type and openings
- Quantity
For custom parts, a dimensioned drawing is the most reliable starting point. Drawings can be emailed to sales@boreviax.com.
Product guidance
Insulation cylinders for transformer winding structures
Transformer insulation cylinders help define electrical clearances and support winding geometry. Depending on the design, cylinders may be supplied as wound, bonded or fabricated structures and can include flanges, openings or other drawing-based features.
Details to confirm
- Inside and outside diameter
- Wall thickness and overall height
- Material grade and construction method
- Joint, flange, opening or reinforcement details
- Roundness, dimensional tolerance and inspection method
Order coordination
- Drawing and revision review
- Manufacturability and material confirmation
- Sample or first-article approval where required
- Dimensional inspection and packing control
- Export documentation and delivery follow-up
Transformer insulation cylinder FAQs
Can cylinders include custom openings or flanges?
Yes. Drawing-based openings, flanges and reinforcement features can be reviewed according to geometry, material and tolerance requirements.
Which dimensions are needed for a quotation?
Provide the latest drawing or, at minimum, the inside diameter, outside diameter or wall thickness, height, material, tolerance, quantity and application.
